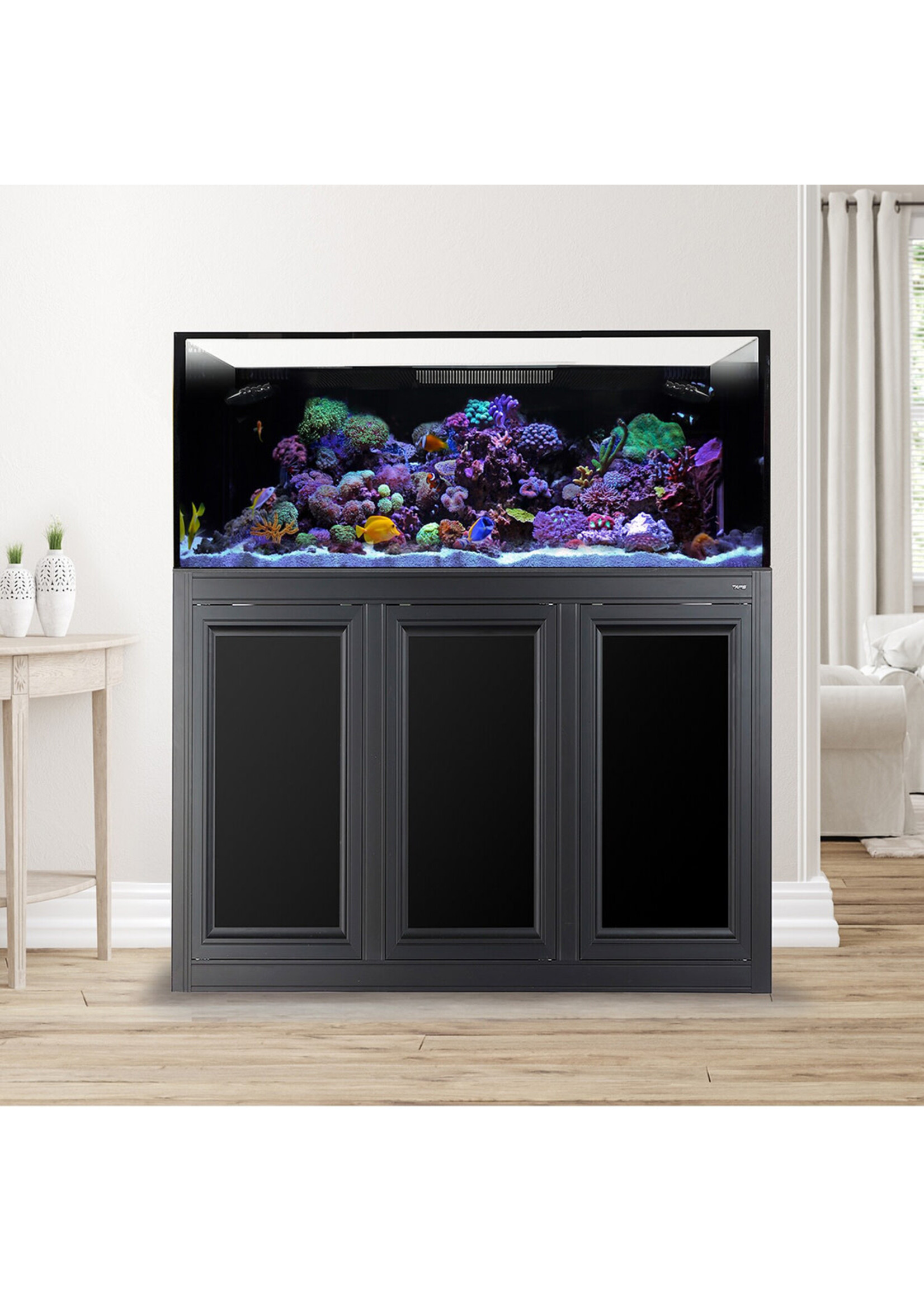

IM EXT 150 LAGOON AQUARIUM W / APS STAND BLACK (MADE TO ORDER)

NUVO EXT - A New NUVO Line overflowing with space

Built from the footprint of the Award-Winning Fusion Aquariums, the NUVO EXT is an Innovative Marine first. Its first to incorporate an all glass overflow, its first with a "Bean Animal" safety drain system and its first that allows 100% room for unobtrusive aquascaping.

The NUVO EXT's External Overflow's design unites beauty with purpose, taking a page from the tried and true Bean Animal style drain system. The dual drains work in tandem, reducing noise and prevention of accidental spillage and blockage. Creating silence, safety and redundancy.

Out of the box, the NUVO EXT is today's modern reef ready system that is ready to be customized just the way you like it as well as the freedom for aquascape creativity.

Aquarium:

Approximately 150 Gallons
DIMS: 47.3” x 35.4” x 19.7”
Tank Package Weight: 488 lbs.
Recessed Euro Brace
Solid Glass Overflow DIMS: 15.7" x 3.5" x 5.9"

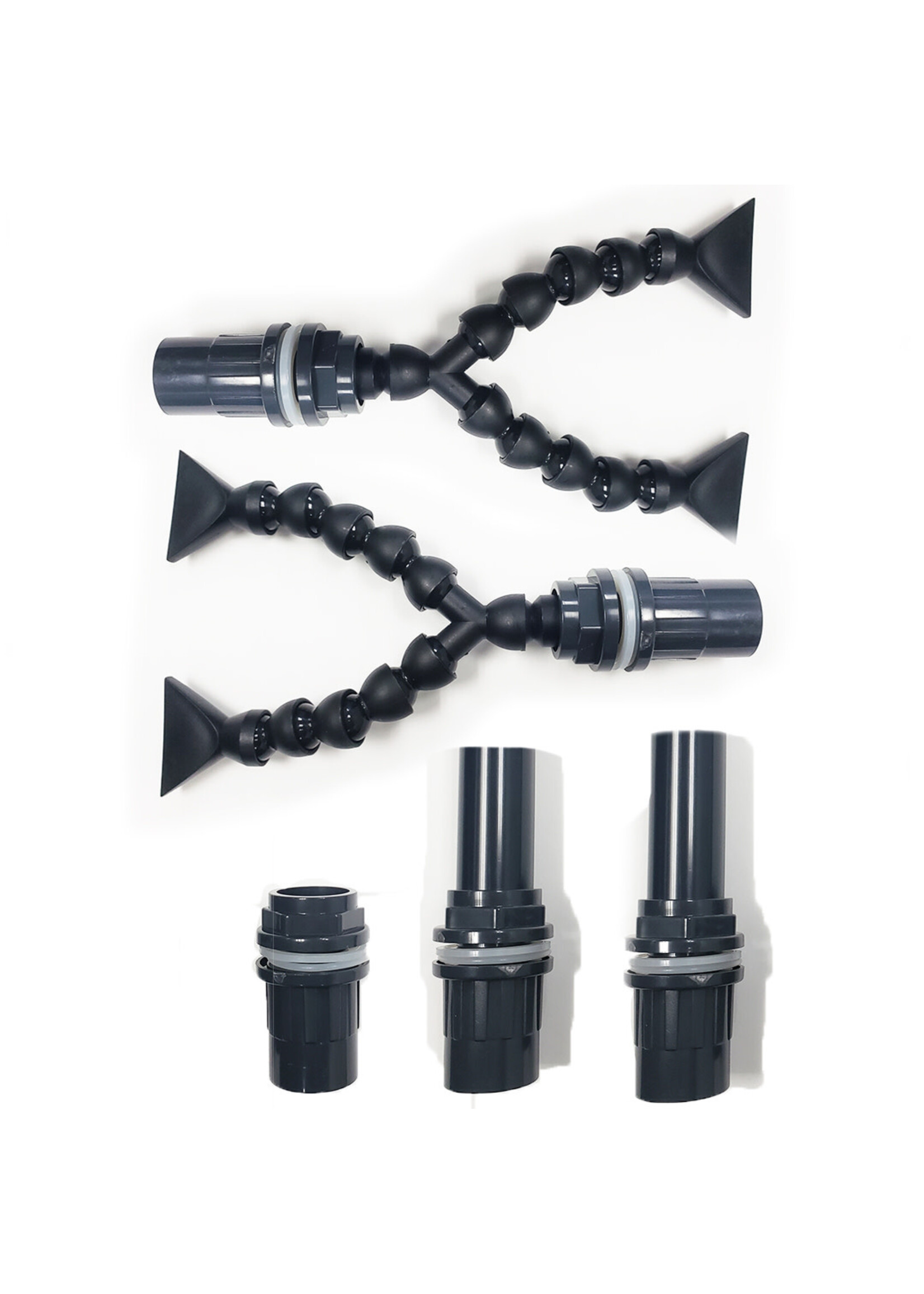

Included Plumbing: 2 - 3/4" NUVO Nozzles [Return] 1- Primary Drain Assembly [Overflow] 1 - E-Drain Assembly, 1 - Secondary E-Drain Assembly
3 - 1” Pre-drilled Drain Holes “BeanAnimal” External Overflow [Primary Drain, Emergency Drain and Secondary E-Drain]
2 – ¾” Pre-drilled Return Hole
Laser Cut Black Acrylic Weir w/ Slot Cut Rear Glass Panel
Ultra-Thick 15mm High Clarity Low Iron Glass / 19mm Bottom Glass
Diamond Edged Flat Polished
Signature Black Silicone
Pre-Assembled SafeScreen Mesh Screen Lid
Pre-Installed Rubber Leveling Mat
Recommended Return Pump Flow Rate: 1500-3000 GPH

APS Stand:

Stand Dimensions: 47.50” x 35.4” x 35.81”
Interior Dimensions: 44.25” x 32.37”x 33.75"
Stand Package Weight: 111 lbs.
Anodized Aluminum
Corrosion Resistant
No Warping or Swelling
Integrated Hardware
Easy Set up (semi-assembled)
Adjustable MDF Shelf
Includes hex torque wrench
Light Weight
Modular
Includes Pre-Cut Closed Cell PVC Foam Boards
Includes Shelf Board
Top and Bottom Magnetic Door Latches
Side Access Doors
Spacious Interior for Sumps
100% Recyclable Aluminum
Color: Matte Black

EXT 150 Lagoon User Manual

APS Stand User Manual

Warranty & Extended Warranty Details

Innovative Marine offers a 3 Year Limited Warranty on this system. Our products are warranted to the original purchaser against defective material and workmanship for 3 Years from the original date of purchase.
